Washer Extractor

Washer Extractor
Send Inquiry
Product Code : 01
Product Description

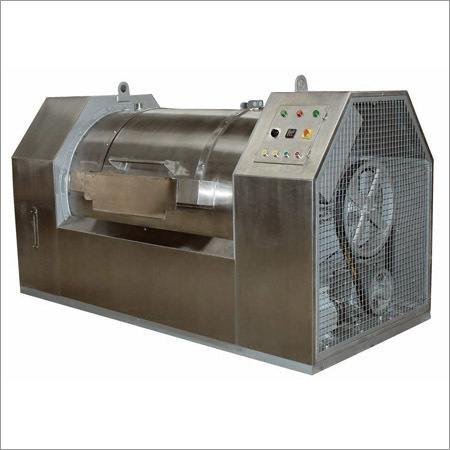

The Washer Extractor that we provide to our customers is widely appreciated for its reliability and high extraction speeds. It has a fully programmable PLC panel which can be sued to set many parameters like wash time, wash temperature, water level, etc. We can customize our products according to your needs like we provide an extension for automatic soap dispenser, upgradable upto 12 soap connections. We provide our Washer Extractor at market leading rates with various easy payment options.

Washer Extractors are the most advanced version of Washing Machines with inbuild Hydro Extractor. These Front Loading machines are fitted with dosing system for Soap, Softner or other chemicals. These machines have water level selection with programmable washing, rinsing and water reusing cycles. They can be Rigid or Suspension mount. These modern machines also have special models that include Dryer option in the same Washing cage thus saving lots of Energy and Physical Labor of operator. The water consumption is also very less as compared to Traditional washing machines.

Standard Features:

  • Fabricated with 304 Grade stainless steel using TIG welding.
  • Precision Temperature controller
  • Variable Water level Controller according to load.
  • HMI with Touch screen controls
  • Dosing system for Soaps and chemicals.
  • Customised Washing, Rinsing, Speed and dosing.
  • Inbuild water reusing feature by adding external tank.

Model

Units

PWR-15

PWR-30

PWR-60

Max Capacity (Dry weight)

kg. (lbs)

15 (33)

30 (66)

60(132)

Cage Diameter

mm(in.)

711(28)

813(32)

1016 (40)

Cage Depth

mm(in.)

406(16)

560 (22)

770 (30)

Cage Volume

cu.m(cu.ft)

0.160(5.66)

0.28 (10.2)

0.617 (21.8)

Water Inlet

mm(in.)

25 (1)

25 (1)

38(1.5)

Steam Inlet

mm(in.)

13 (0.5)

13 (0.5)

13 (0.5)

Drain Pipe

mm(in.)

50 (2)

75 (3)

75 (3)

Cage Motor

Kw(HP)

2.1 (3)

5.5 (7)

11(15)

Extraction speed

RPM

Upto 500

Upto 500

Upto 500

Machine Height

mm(in.)

1575 (62)

1676(66)

1900(75)

Machine Depth

mm(in.)

1066 (42)

1300(51)

1500(59)

Machine Width

mm(in.)

1066 (42)

1200 (47)

1550(61)




Trade Information
  • Main Domestic Market
  • North India
